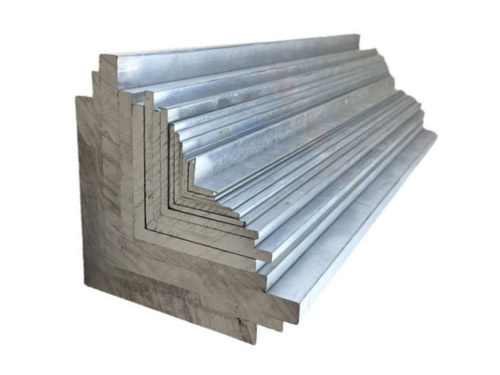

Aluminum Angle Bar

Aluminum Angle Bar

Aluminum angle bar, also known as an aluminum angle profile or aluminum L-profile, is a structural aluminum extrusion with an L-shaped cross-section. It features two perpendicular legs that form a 90-degree angle. Aluminum angle bars are commonly used in construction, manufacturing, and various applications where strength, rigidity, and corrosion resistance are required.
Get Latest Price
Standard: ASTM, GB, DIN, BS, EN, JIS
DetailsFAQ'S

Product Specification and Size :

Standard Specification: GB/T 6892, ASTM B221, EN754, EN 755

AlloyTemper
5xxx: 5083O, H112
6xxx: 6005, 6060, 6061, 6063, 6082,6463T5, T6, T66

Alloy Designation (For Reference)

Comparison of Alloy Designations for Aluminum Products

Alloy SeriesChinese StandardAmerican StandardEuropean Standard
5xxx Series50835083EN AW-5083
6xxx Series60056005
60606060EN AW-6060
60616061EN AW-6061
60636063EN AW-6063
60826082EN AW-6082
64636463EN AW-6463

Temper Designation (For Reference)

TemperDefinition
OAnnealed
H112Slightly strain harden from working at an elevated temperature or from limited amount of cold work
T5Cooled from an elevated temperature shaping process and then artificially aged
T6Solution heat-treated and then artificially aged
T66Solution heat-treated and then artificially aged - mechanical property level higher than T6 achieved through special control of the process (6000 series alloys)

Available Size Range

DimensionRange
A10mm~200mm
B10mm~200mm
T2mm~15mm
Length1,000~6,000mm

Application

Aluminum angles are used in numerous industrial applications, including scaffolding, shipbuilding, transmission towers and furniture applications.

- Production Process: Extruded
- Form & Image: Equal Angle, Unequal Angle
- Surface Finish: Mill Finish, unless otherwise specified
- Surface Protection: Paper interleaved

Chemical Composition

AlloySiFeCuMnMgCrZnTiOthers:
Each		Others:
Total		Al: Min.
50830.400.400.100.40~1.04.0~4.900.05~0.250.250.150.050.15remainder
60600.30~0.600.10~0.300.100.100.35~0.600.050.150.100.050.15remainder
60610.40~0.800.700.15~0.400.150.80~1.200.04~0.350.250.150.050.15remainder
60630.20~0.600.350.100.100.45~0.900.100.100.100.050.15remainder
60820.70~1.300.500.100.40~1.00.60~1.200.250.200.100.050.15remainder
64630.20~0.600.150.200.050.45~0.90-0.05-0.050.15remainder

RELEVANT PRODUCTS

Aluminum Bar
    A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
    A: We have become trade partners with more than 50 countries around the world, mainly exporting to the United States, Russia, Britain, Kuwait, Egypt, Türkiye, Jordan, India, etc.
    A: Of course! As long as you contact us, we can provide free inventory samples. Customized samples take approximately 5-10 days.
    A: You can contact me on WhatsApp, call me, or send us an email online form to let us know your product specifications.
    A: Usually 15 tons, but adjustments will also be made based on the product or your needs, as well as the actual inventory situation.
    A: The products will be delivered ASAP on the basis of the quality assurance.Generally,samples order's delivery time is 5-10 days.Container orders are about 15-20 days.
    A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other metal materials companies.
